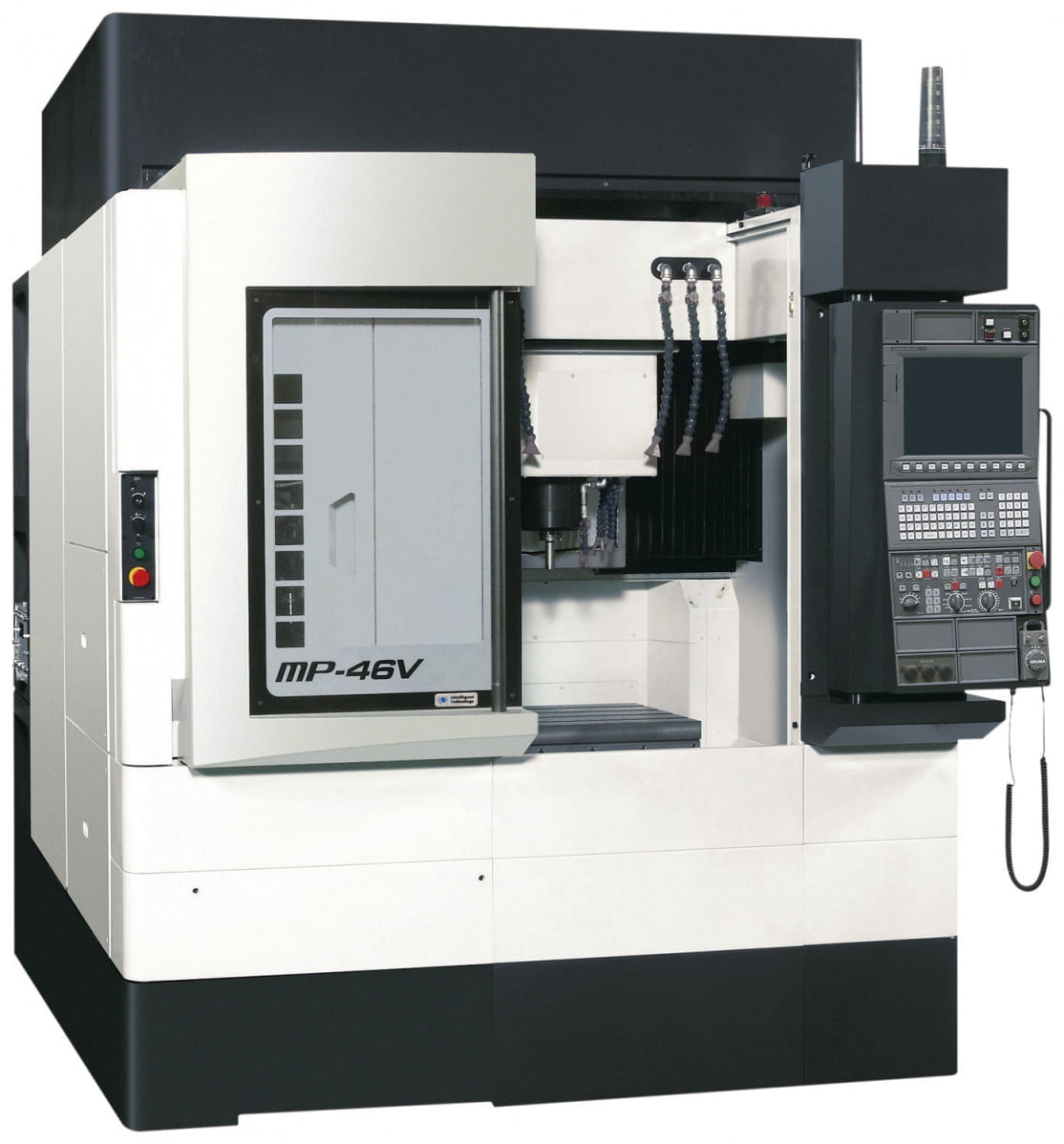

Okuma MP-46V

For the most demanding requirements in terms of surface quality: high-precision production in mould construction and micro milling is the speciality of the MP-46V 3-axis vertical machining centres.

The optimised gantry design with a low, wide centre of gravity allows high accelerations to be achieved in all axes. Super-precision and process safety is guaranteed by the Thermo-Friendly Concept in conjunction with oil-cooled ball screws and absolute encoders. The Advanced TAS-C, standard on the machine, also compensates for thermal expansion of the table.

Equipped with the industry-leading OSP suite control, the machine can work with Machining Navi anti-vibration software and the Super-NURBS system for increased productivity.

Specifiche tecniche

Technical Data
X- Y- Z axes travels [mm]660/460/360
Number of tools20 [32, 48]
X- Y- Z rapid travels [m/min]24/24/24
Motors15Kw,20.000 /30.000rpm
