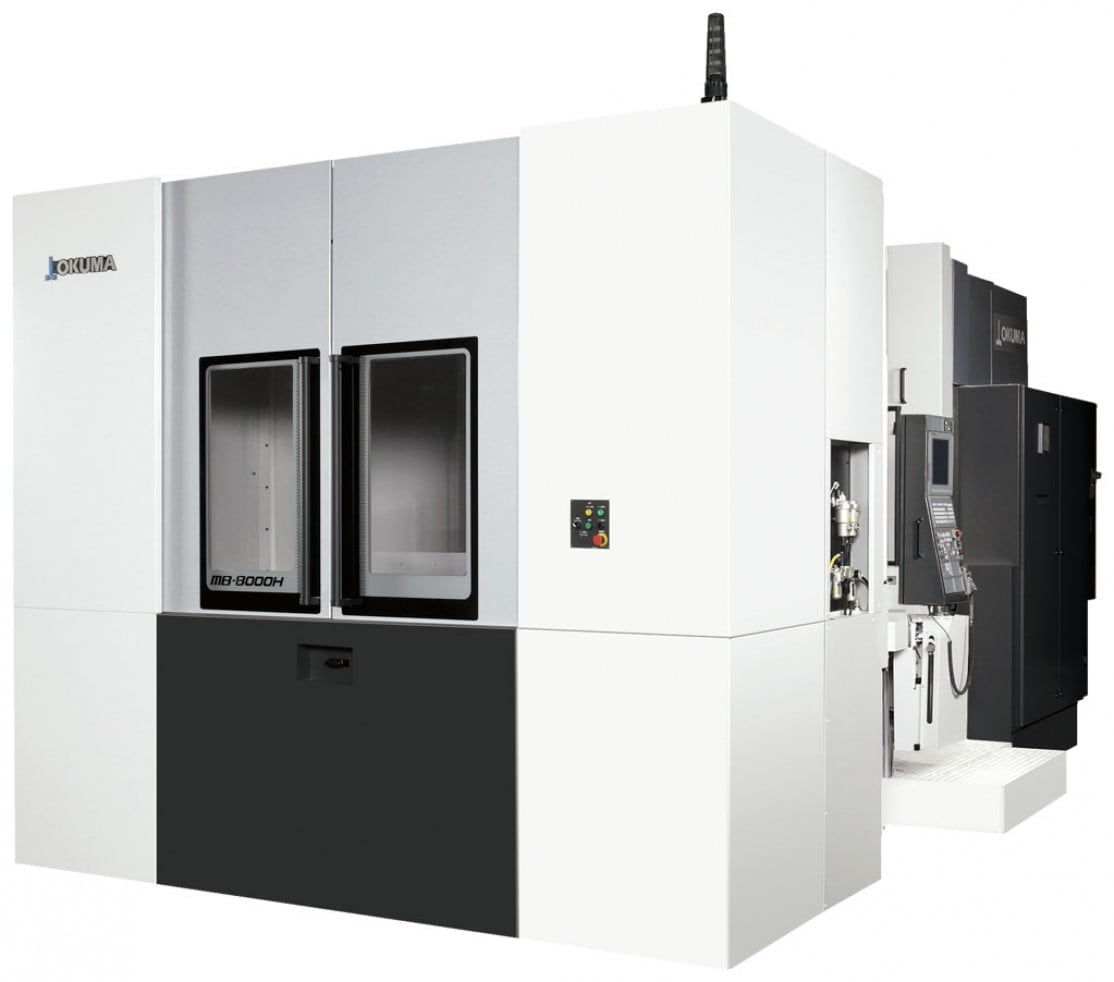

Okuma MB-H Series

Ideal for high-precision milling at moderate costs.

The horizontal machining centres of the MB-H series are equipped with a fast pallet changer and high axial acceleration on linear guides.

The machines are mainly used in production for the automotive industry, agricultural machinery, construction equipment or railway parts.

Automation via FMS guarantees a drastic reduction in set-up times. The Turn-Cut function allows synchronisation of the spindle speed with circular interpolation in the X and Y axis, ideal, for example, when turning conical face grooves with helical interpolation, typical on butterfly valves.

The Thermo-Friendly Concept ensures maximum process reliability, measurement stability and shape accuracy in production.

The machines in the MB-H series can also be extended with numerous applications, such as the Super-NURBS high-speed control or the Machining Navi, which reduces vibrations during machining.

As an option, the MB-H series can be automated with FMS systems, pallet stations and robots.

Specifiche tecniche

Technical DataMA-800HBMA-400HAMA-12500H
X- Y- Z axes travels [mm]560/ 610/ 6251.400/1.250/1.2502.200/1.600/1.650
Number of tools304081
X- Y- Z rapid travels [m/min]D.600x710x400KgD.1.400×1.450×2.000KgD.2.000×1.600×5.000Kg
Fast travels X-Y-Z [m / min]60/60/6050/50/5042/42/42
