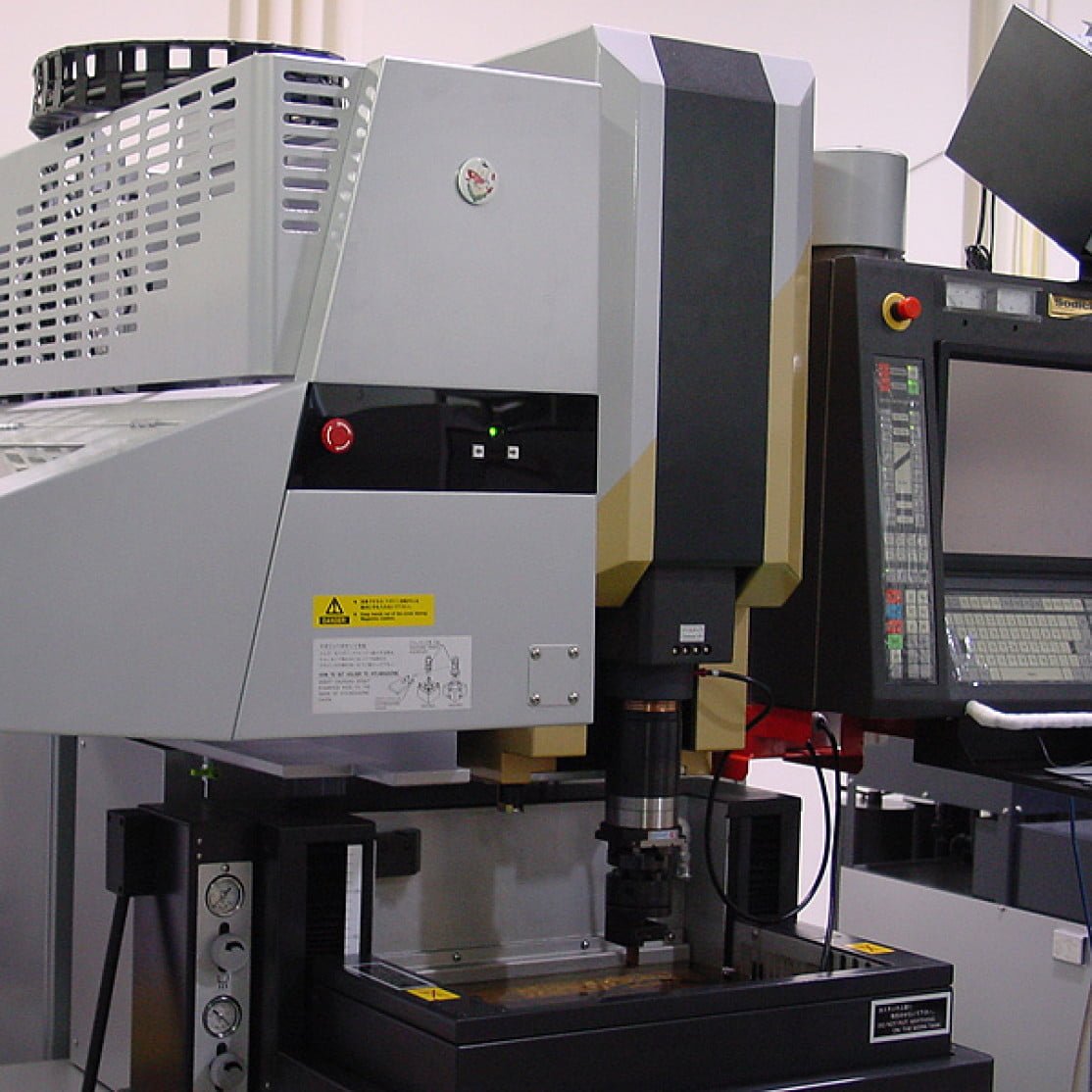

Sodick AP series

Featuring Sodick technologies, the AP series is designed to achieve the highest precision in EDM applications.

The design and technological features make the AP series the ideal machine for micro machining.

The new SUPER SVC circuit is dedicated to small-scale machining where finishing capacity, low wear and machining speed are required.

Specifiche tecniche

Technical DataAP 1LAP 3L
Working table size (W x D)360 x 220 mm500 x 350 mm
Work tank internal dimensions (WxDxH)503 x 349 x 250 mm760 x 538 x 260 mm
X/Y/Z axis travels200 x 120 x 200 mm300 x 250 x 250 mm
Fluid level in work tank (from Min to Max)80 ~ 200 mm80 ~ 210 mm
Max. workpiece weight25 Kg200 kg
Max. electrode weight5 Kg5 Kg
Dielectric tank
Tank dimensions (W x D x H)1095 x 435 x 785 mm1280 x 480 x980 mm
Load capacity120 Lt150 Lt
