Sodick AQ series

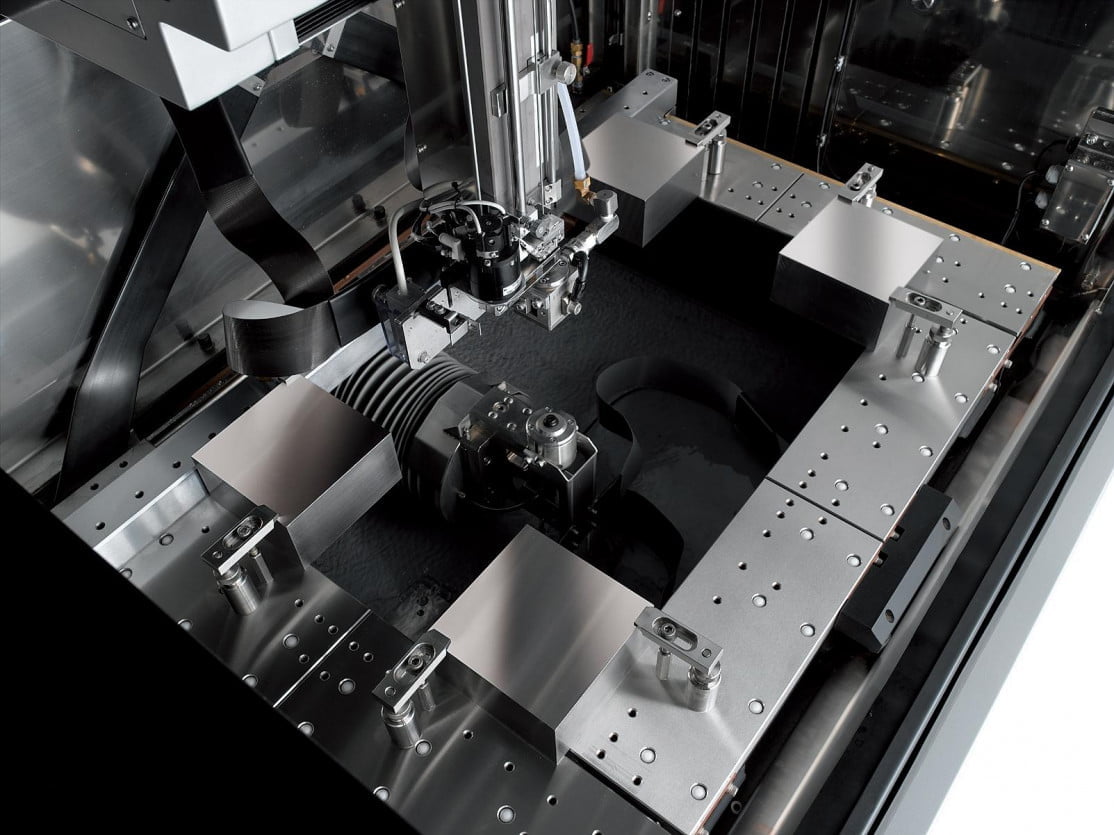

This large but compact machine is supplied in 5 separate units and installed on site by specialised technicians. The front part of the machine and the work tank are completely integrated in the machine body allowing the head to be free from the work area and therefore with a greater workpiece loading capacity of up to 10,000 kg.

The working table is fixed, eliminating any possible distortion during machining.

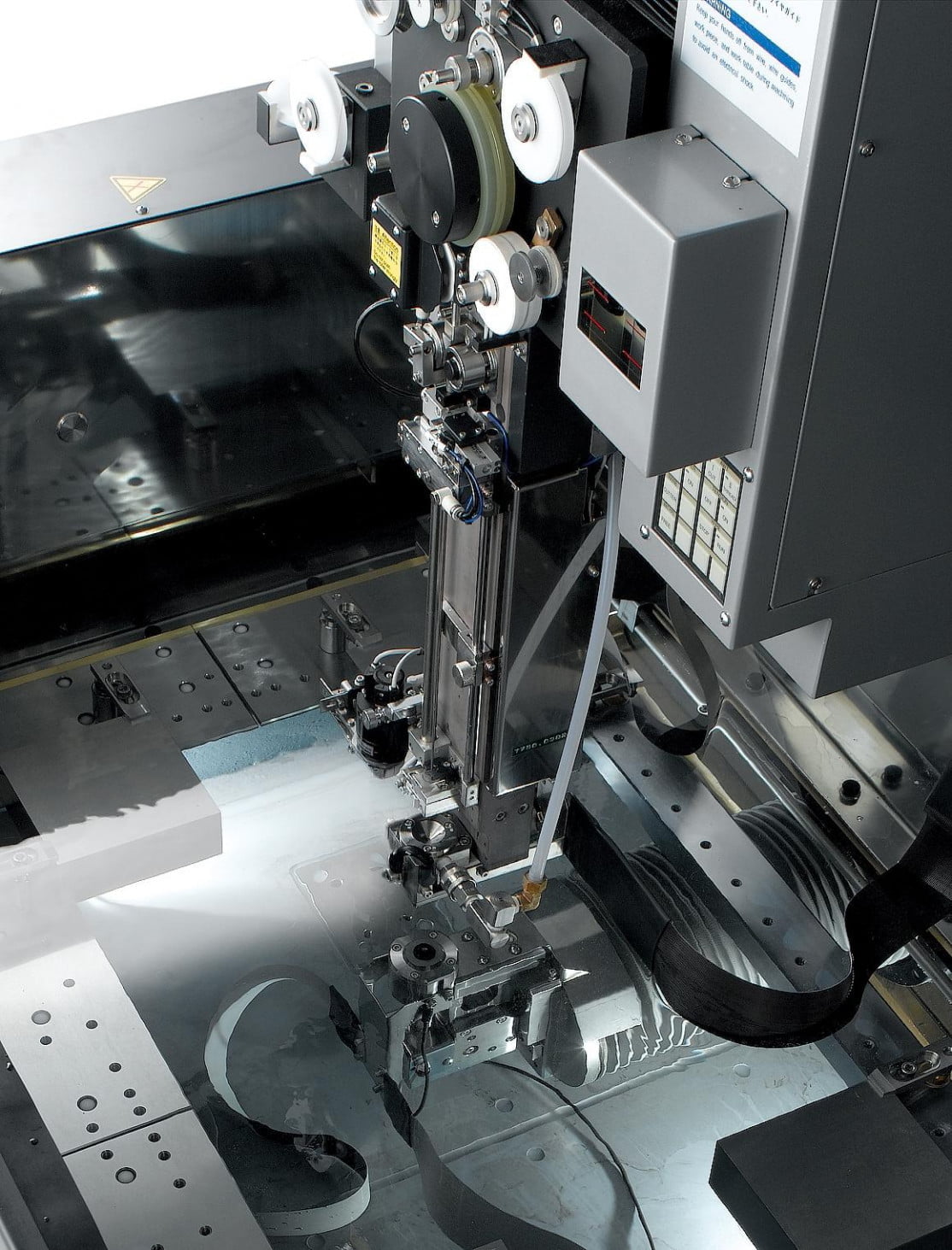

The bridge structure (gantry), symmetrical on X and Y, gives it rigidity. Two optical scales and a double linear motor on the Y axis provide greater speed and positioning accuracy.

Specifiche tecniche

Technical Data
X/Y/Z axis travels900×1500(+500 extra corsa di servizio) x 600 mm
Table dimensions (WxD)1000 x 2000 mm
Work tank dimensions1400x2500x800 mm
Dielectric level in tank (from Min to Max)400 ~ 750 mm
Work tank capacity3000 Lt
Max. workpiece weight10.000 kg
Max. electrode weight100 kg
Dielectric tank
External dimensions (WxDxH)3050x2050x2550 mm
Load capacity4500 Lt
