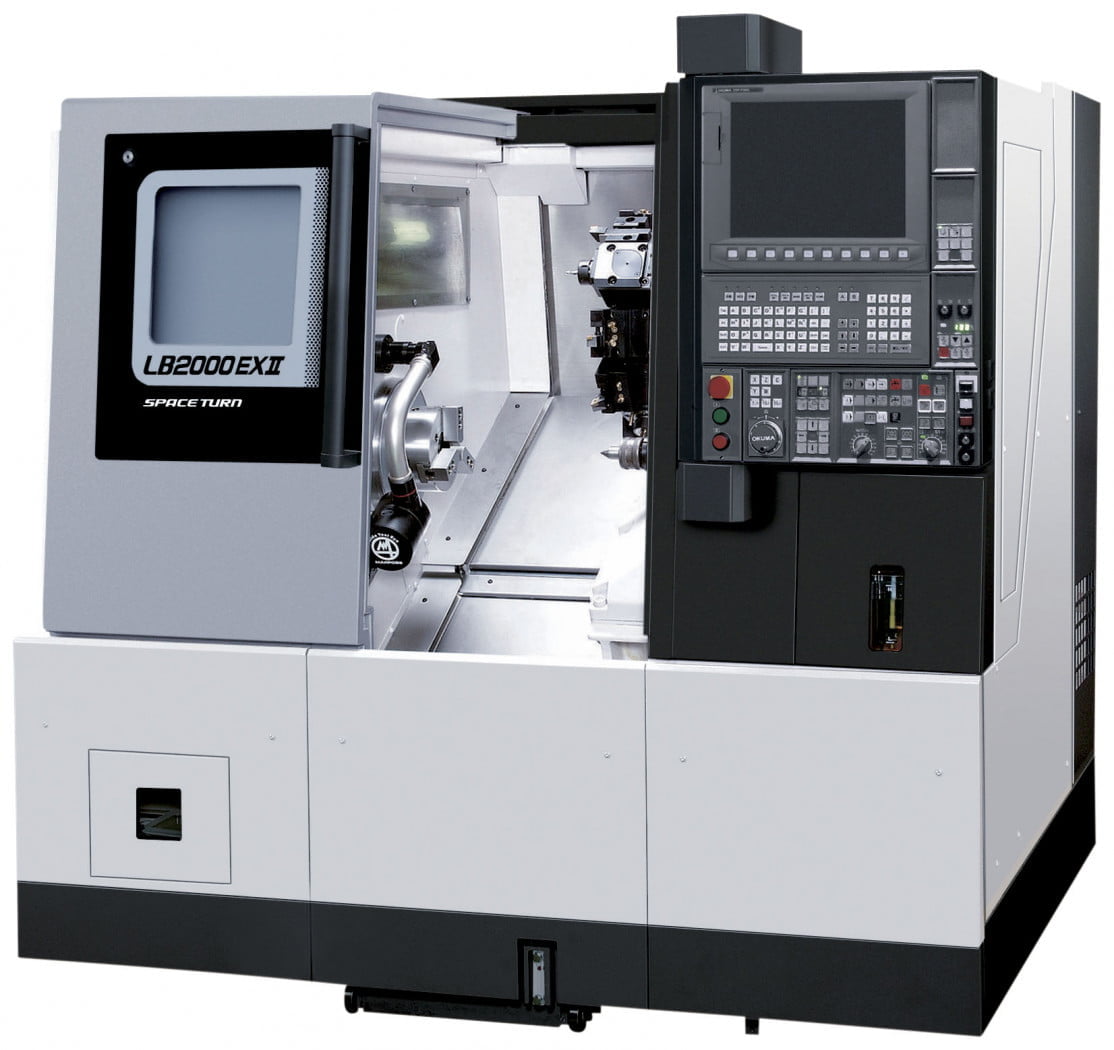

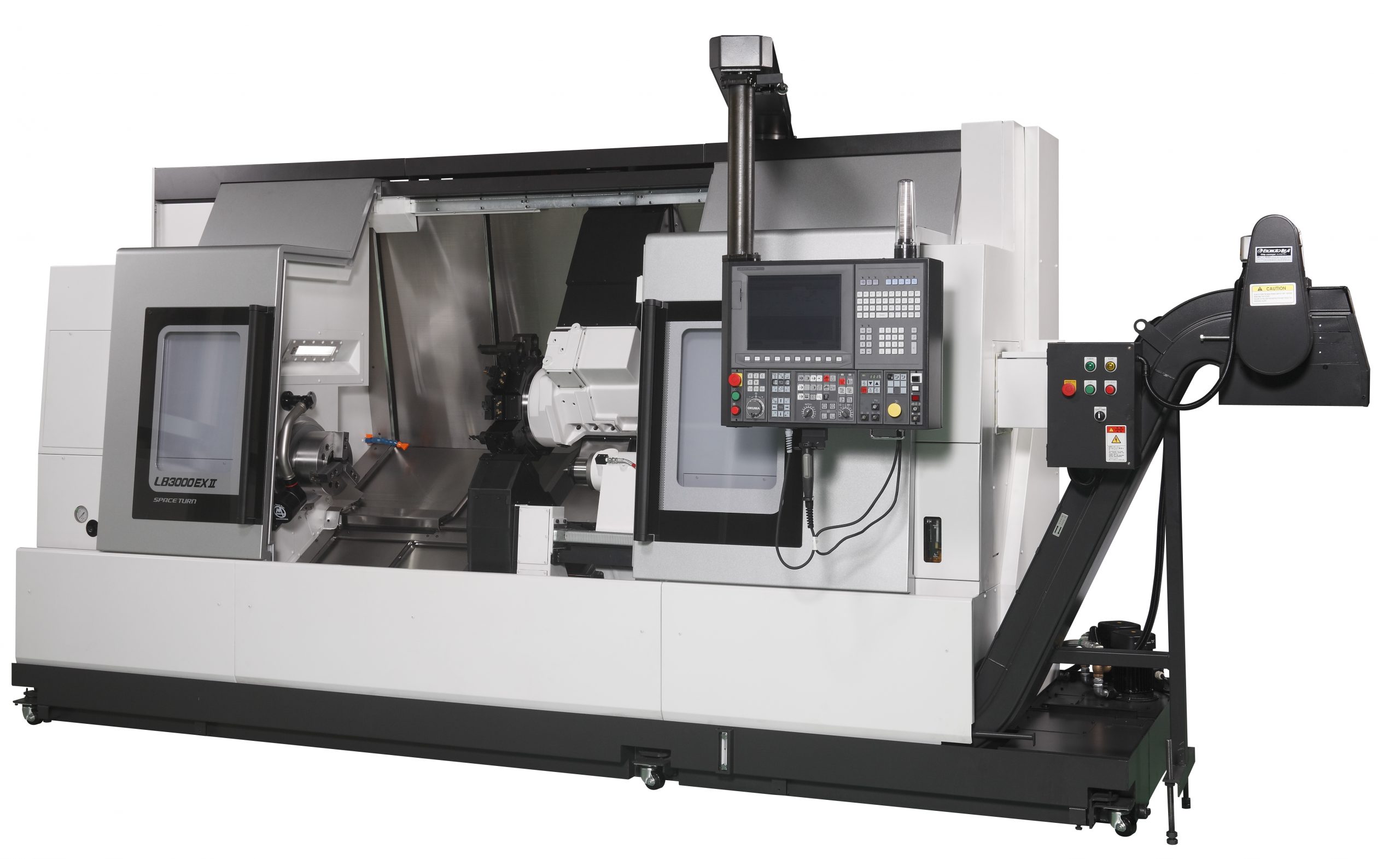

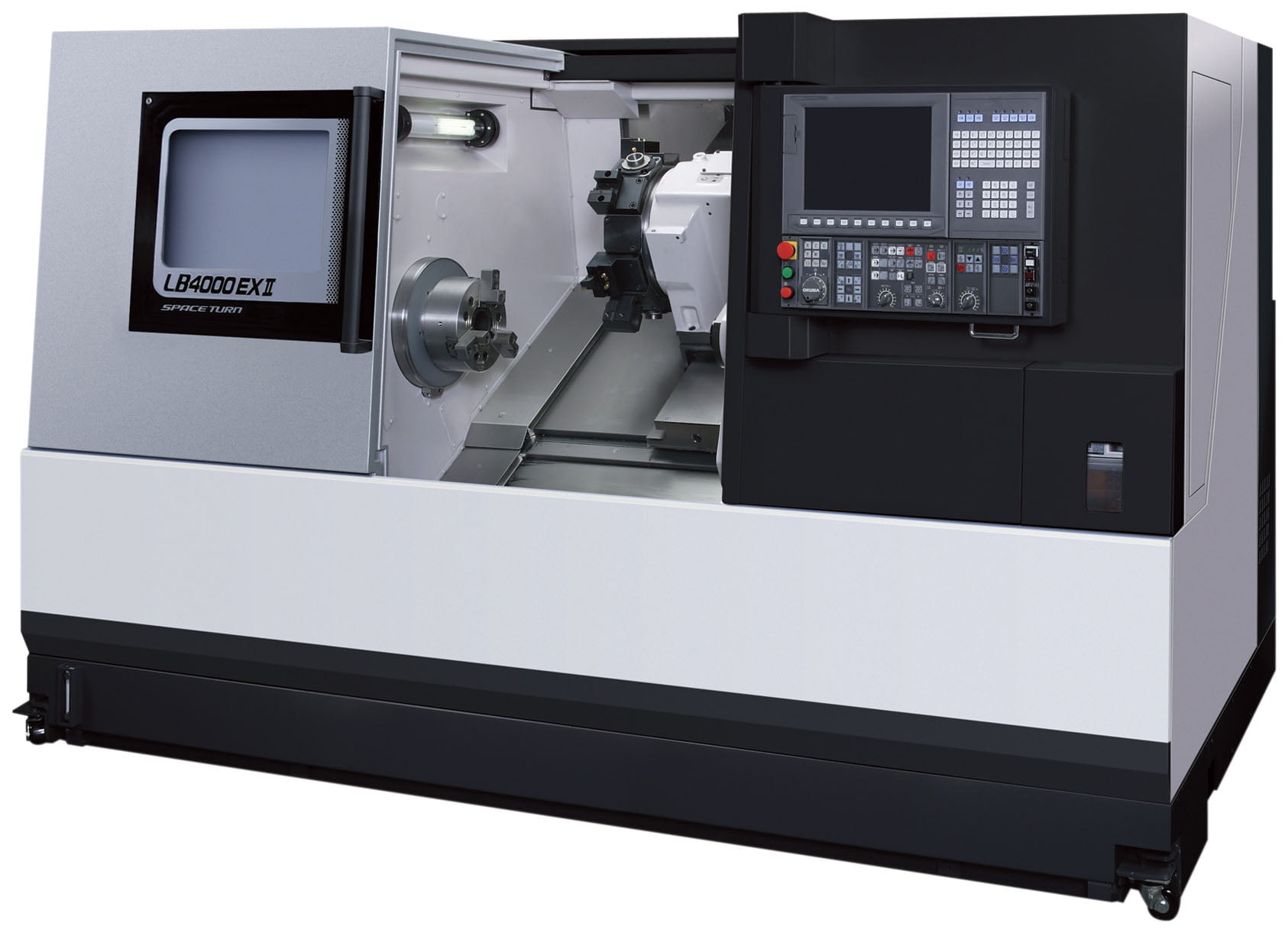

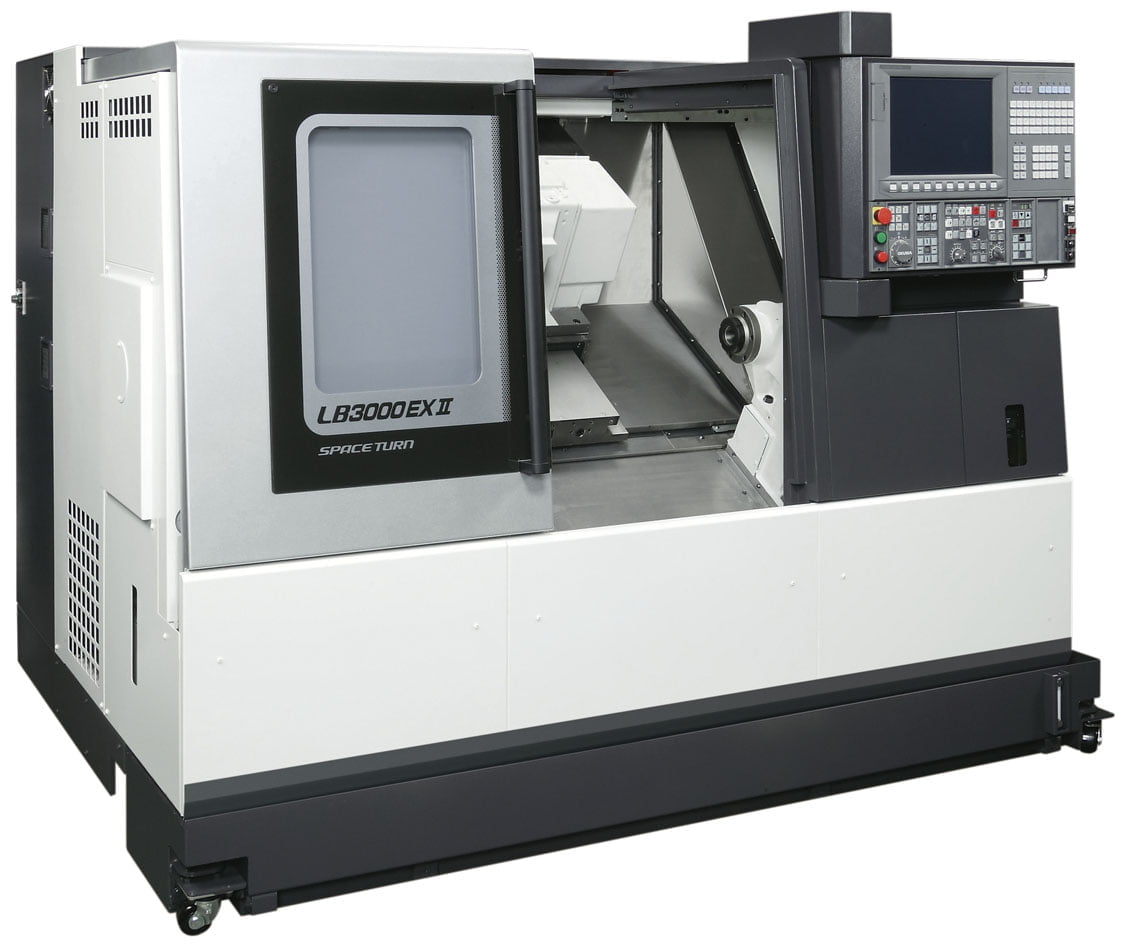

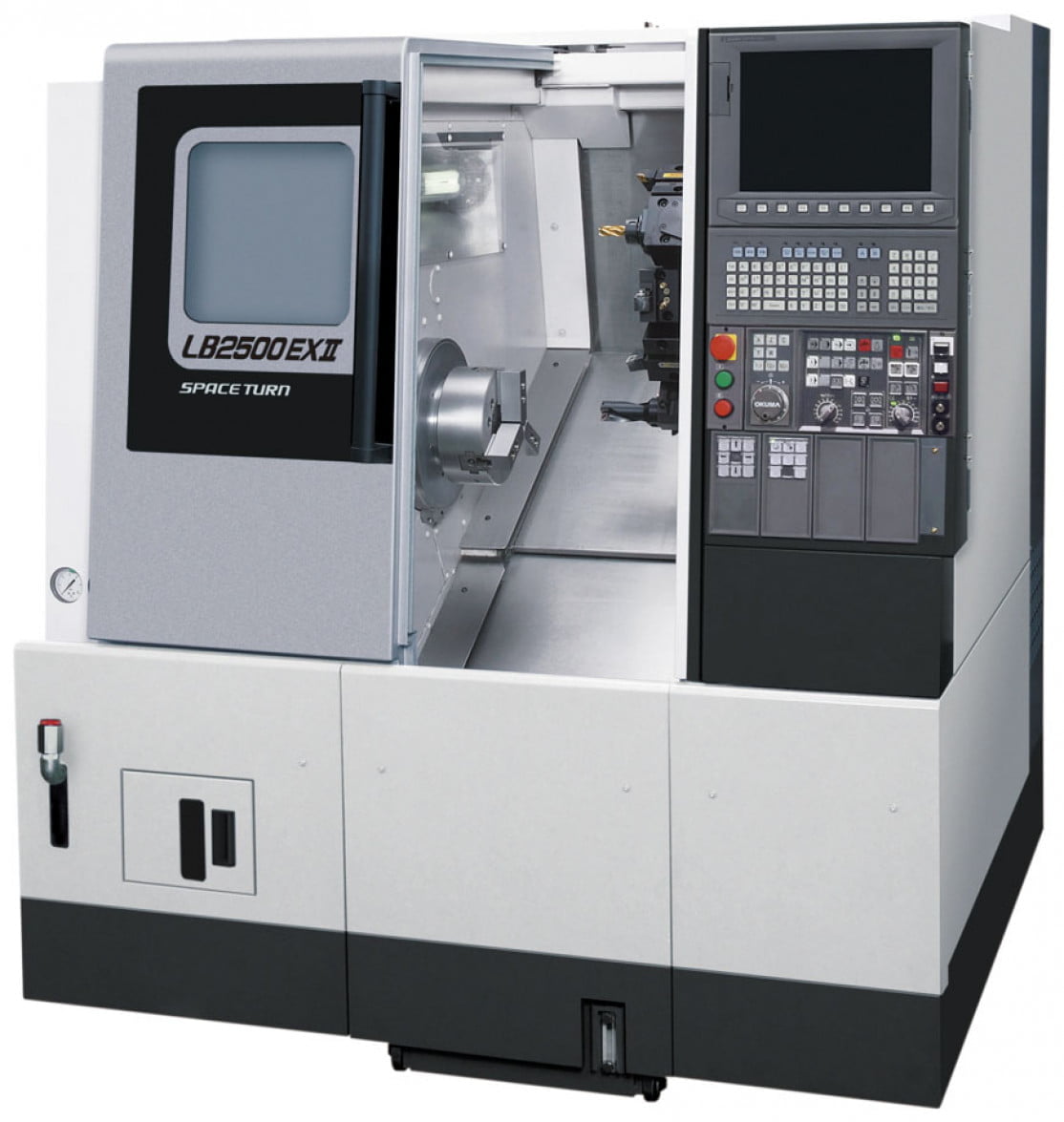

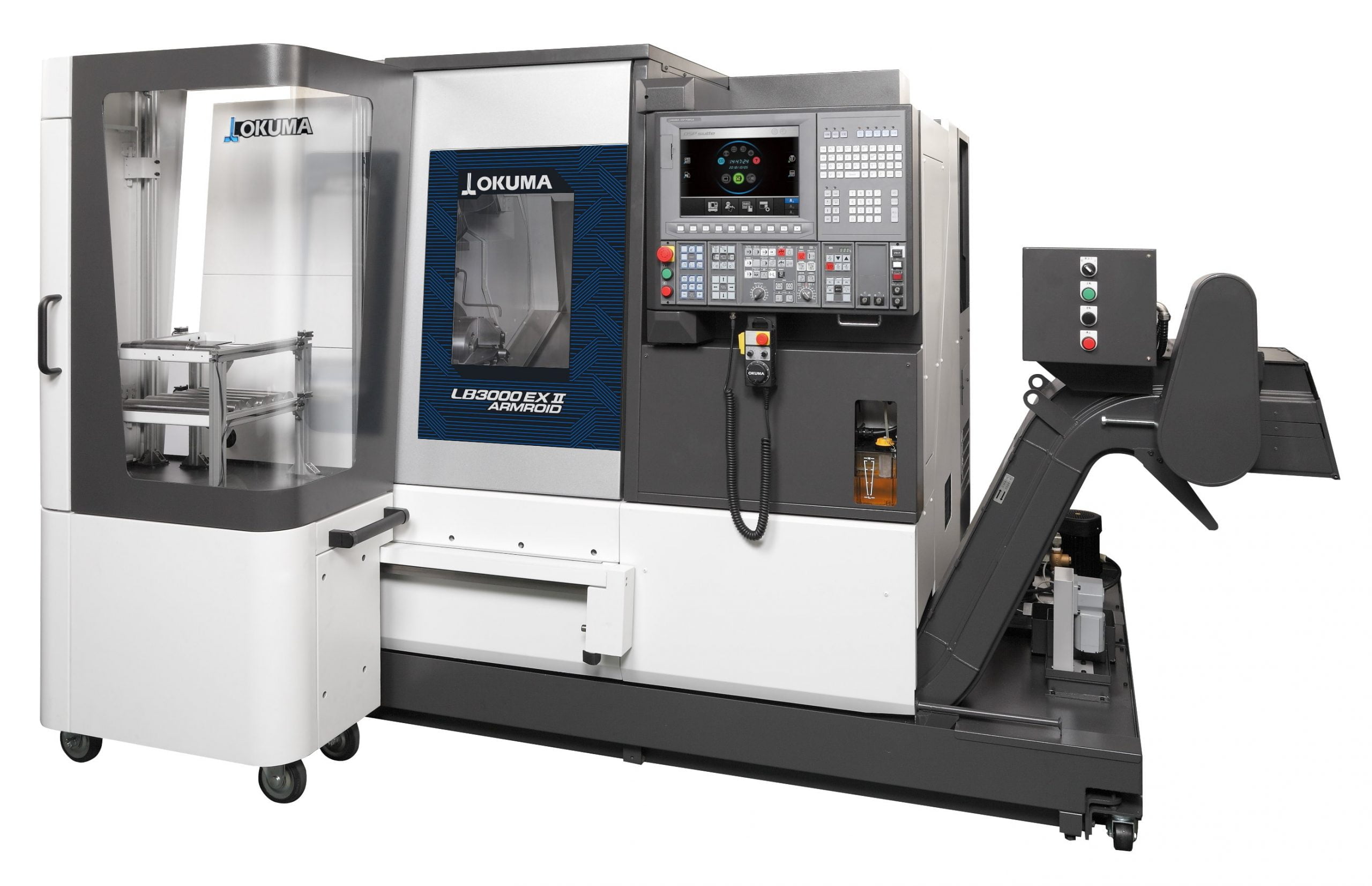

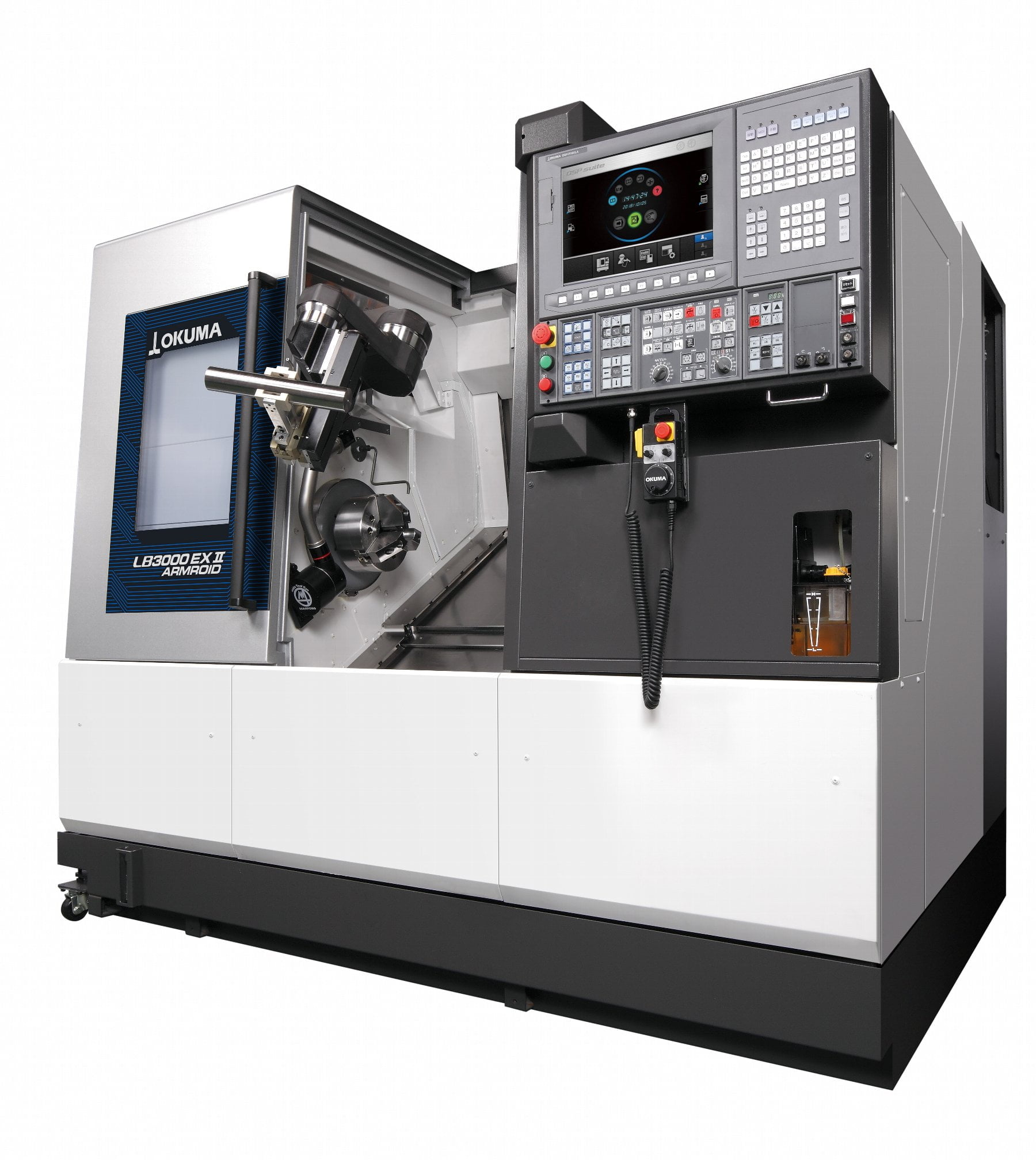

Okuma LB EX Series

Universal milling machine ideal for single parts and small to medium batch production. The SPACE TURN LB EXII series is particularly suitable for universal turned parts and complete machining of complex workpieces.

The models are available in four sizes and with Y axis and counter spindle as an option. The large, flat-polished guideways and high-torque drives guarantee high precision and accuracy over time.

Specifiche tecniche

Technical DataLB2000 EXIILB2500 EXIILB3000 EXIILB4000 EXII
Max. Turning diametermm430410410480
Max. Turning lengthmm300150250/500/1.000380/750/1.500/2.150
Main spindle speedmin-160005.0005.0004.200
Number of tools12121212
Motor (PREX)kW11/7.5 [15/11; 22/15]22/15 [30/22]22/15 [30/22]30/22 [37/30]
X-Z rapid travelsm/min25/3025/3025/30
Support surfacemm1.945 × 1.7341.880 x 1,7342.310 x 1,734 / 3.420 x 2.0413,050 / 4,175 / 5,515 x 1,900
