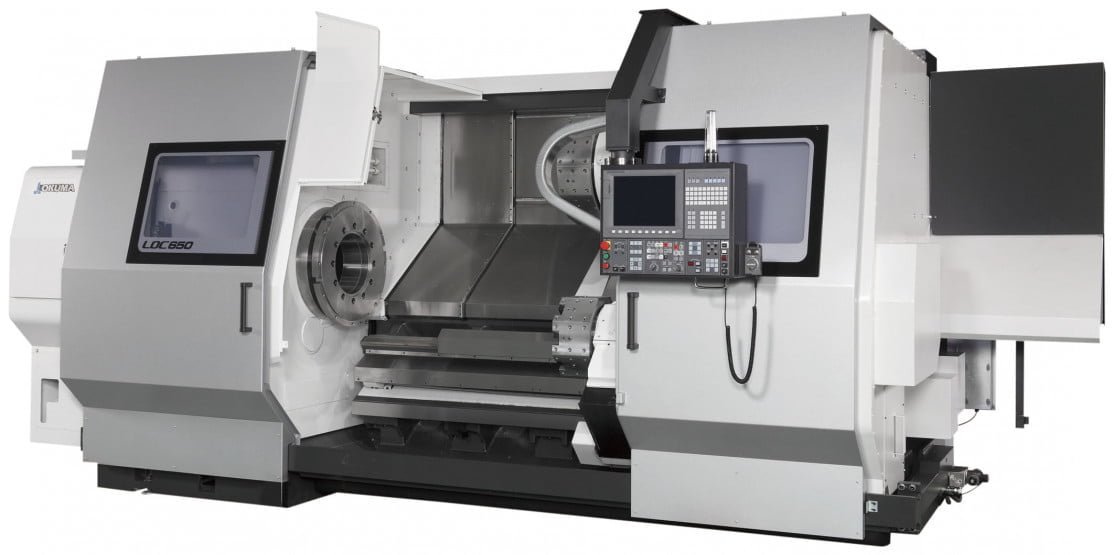

Okuma LOC series
For heavy machining of large and heavy turned parts and for machining pipe ends: the LOC series has been specifically developed for the requirements of the oil industry. In threading, the LOC series is appreciated for its precision and high work rate.
It is possible to equip the machine with one or two revolver tool holders. Each model is equipped with three bore variants per spindle and can also machine large diameter pipes.
Specifiche tecniche
| Technical Data | LOC 500 | LOC 650 | |
|---|---|---|---|
| Max. Turning diameter | mm | 660 | 650 |
| Max. Turning length | mm | 2000 | 1750 |
| Main spindle speed | min-1 | 2000 | 1500 |
| Number of tools | 12/10 | 12/8 | |
| Motor (PREX) | kW | 37/30 [45/37; 55/45] | 45/37 [55/45] |
| X-Z rapid travels | m/min | 15/20 | 5/10 |
| Support surface | mm | 6.060 x 2.912 | 3.005×8.065 |
