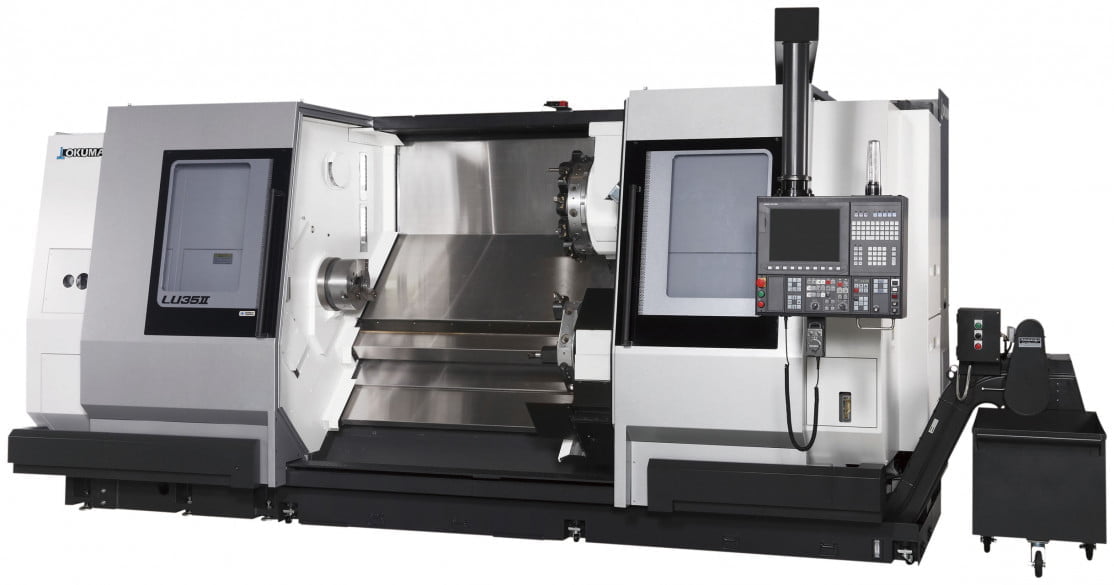

Okuma LU series
An average of 35 % savings on time per part and cost per part: the turning machines of the LU series with their two revolving tool holders are technology and market leaders in the area of 4-axis synchronous and simultaneous machining. With its solid construction, large flat-base polished guideways and high-torque drives, the series is particularly suitable for workpieces with a high length-to-diameter ratio.
The LU series also proves to be an excellent choice for machining removable materials and for hard turning. The Okuma OSP-P300L control, a proven leader in 4-axis programming, guarantees the usual high level of user comfort.
Specifiche tecniche
| Technical Data | LU-S1600 | LU 35II | LU 45II | |
|---|---|---|---|---|
| Max. Turning diameter | mm | 160 | 5000 | |
| Max. Turning length | mm | 550/100 | 850/1.500/2.000 | 1.000/2.000/3.000 |
| Main spindle speed | min-1 | 4000 | 3.200 [2.800, 1.400] | |
| Number of tools | 6 | 12/10 | 12/10 | |
| Motor (PREX) | kW | 11/7,5 [15/11] | 30/22 [37/30] (VAC) | |
| X-Z rapid travels | m/min | 20/30 | 15/20 | |
| Support surface | mm | 2.440×1.980 | 4.535 x 2.570 | 4.750 x 2.832 |
| Options | M |
