Okuma Multus B Series

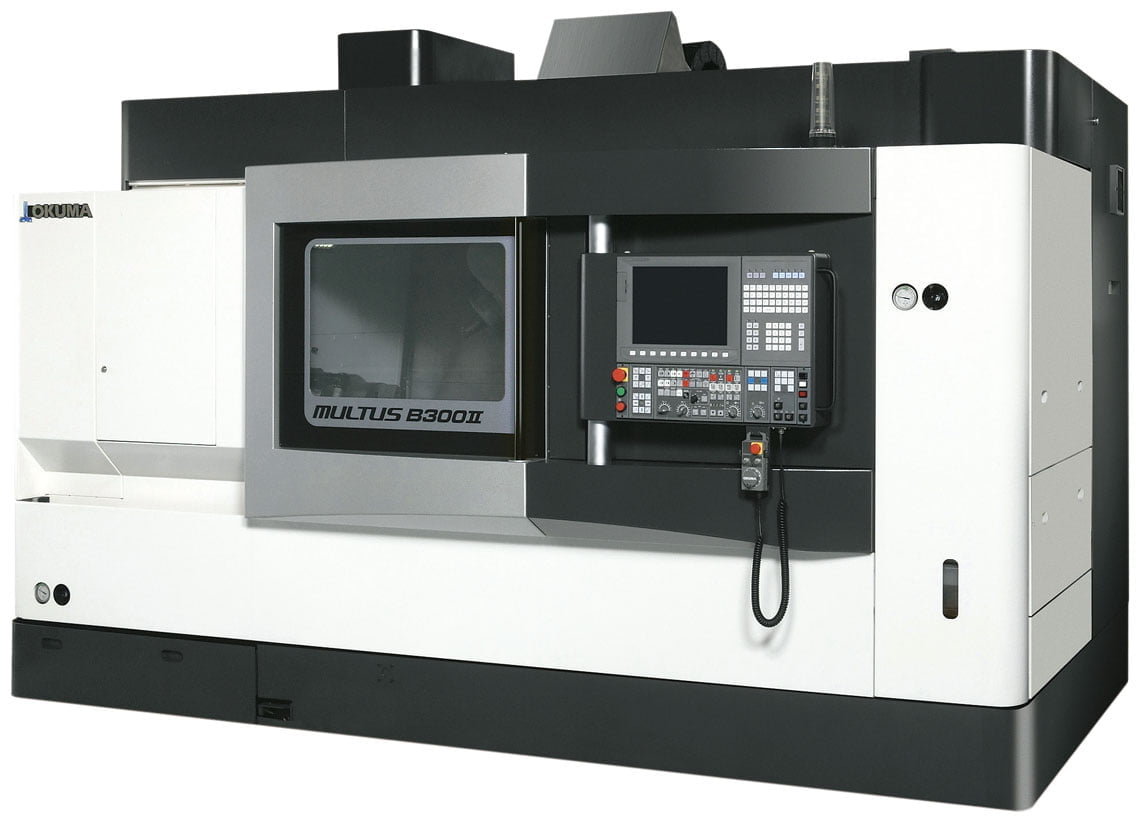

Okuma MULTUS B, a 5-axis machining plant with the possibility of producing fully finished components with complex geometries.

Specifiche tecniche

Technical DataB200IIB250IIB300IIB400IIB550B750
Max. Turning diameter [mm]6006006307108301050
Max. Turning length [mm]7507509001.550 [2.050]2.000 [3.000]3.000 [4.000; 6.000]
Main spindle speed [min-1]6.000 [5.000]45 to 5.0005.000 [3.800]3.800 [2.800]3.000 [2000]2.000 [1500, 1000]
Number of toolsH1-ATC: 20 [40, 60, 120]20 [40, 60]H1-ATC: 20 [40, 60, 120]]H1-ATC: 20 [40, 60, 120]]H1-ATC: 40 [80, 160]H1-ATC: 40 [80, 160]
Motor (PREX) [kW]11/7,5 [15/11; 22/15]22/1515/11 [22/15]22/15 [30/22]37/3037/30 [45/37]
X- Y- Z rapid travels [m/min]40/26/4040/26/4040/26/4040/26/4040/40/4040/40/40
Support surface [mm]3.385 x 2.2103.190 x 2.2104.340 x 2.2575.750 x 2.6938.030 x 3.2589.130 x 3.532
OptionsWWWWWW
